Spring Boot 3 Webflux OOM Troubleshooting ::

Issue Description#

Recently, I encountered an OutOfMemoryError (OOM) issue in a Spring Boot 3 Webflux application. The error log is as follows:

    "logger": "reactor.core.scheduler.Schedulers",
    "@version": 1,
    "appVersion": "0.0.0",
    "cloud": "aws-ec2",
    "stacktrace": "java.lang.OutOfMemoryError: Java heap space\n",
    "thread": "boundedElastic-8",
    "level": "ERROR"

Root Cause Analysis#

The application was using java21 with 6GB heap memory. But the actual memory usage was not high. When the oom occurred, the prometheus can’t scrape the metrics endpoint anymore.

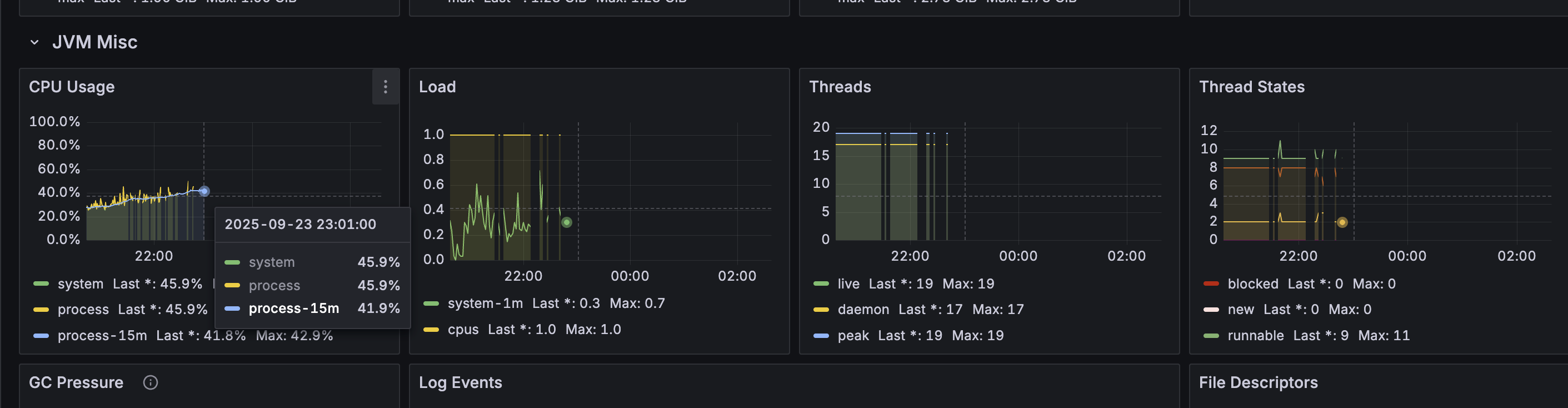

webflux-oom-jvm

Troubleshooting Steps#

Before we restart the application, we can try to get the heap dump file first.

Because we are using spring boot actuator, we can check the /actuator/heapdump endpoint to get the heap dump file first. Then analyze the heap dump file with Eclipse MAT.

Get Heap Dump File#

reference Spring Boot Actuator - Heap Dump
add configuration in application.yml (spring boot 3.5.4)

management:
    endpoints:
        web:
            exposure:
                include: health,info,heapdump
    endpoint:
        heapdump:
            enabled: true

access the endpoint http://xxx/actuator/heapdump to download the heap dump file

Analyze Heap Dump File#

Download and install Eclipse MAT
For M2 Mac, you need to configure the /Applications/MemoryAnalyzer.app/Contents/Eclipse/MemoryAnalyzer.ini

### Add your vm arguments here
-vm
/Users/matthew/.sdkman/candidates/java/current/bin
### need to add -vm before -vmargs
-vmargs
--add-exports=java.base/jdk.internal.org.objectweb.asm=ALL-UNNAMED

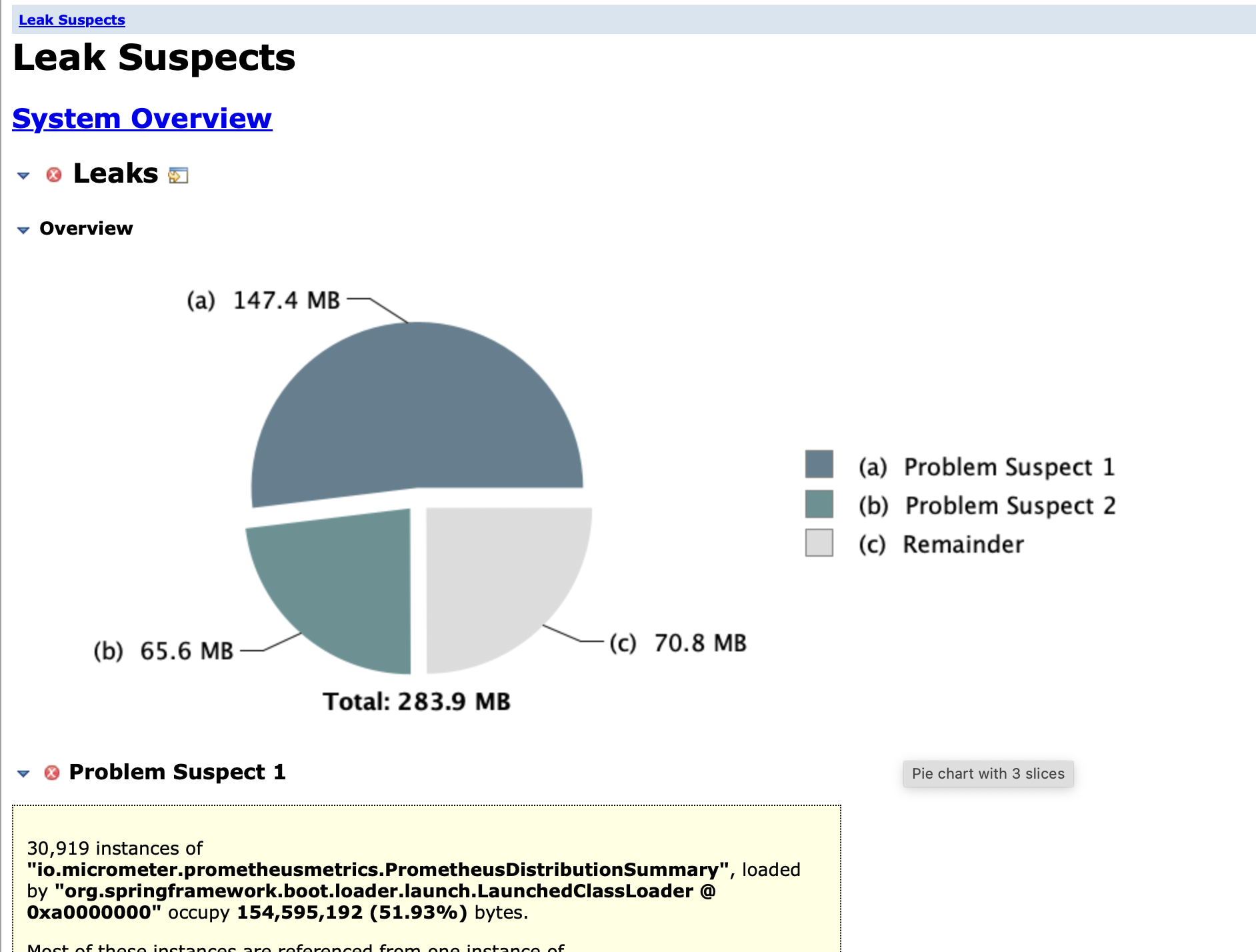

Open the heap dump file with Eclipse MAT (Should revise the heapdump file name to heapdump.hprof first. Then the Eclipse MAT can recognize the file.)

Seems like too many PrometheusDistributionSummary instances are created.

Solution#

I just removed the distribution configuration in application.yml for prometheus metrics.

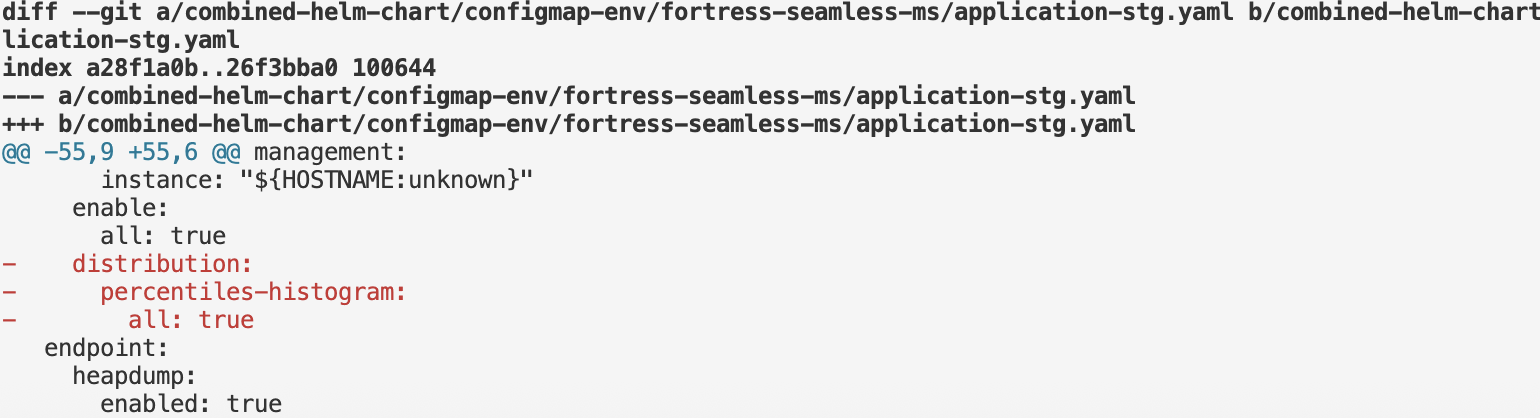

webflux-oom-fix

Then the OOM issue is resolved.

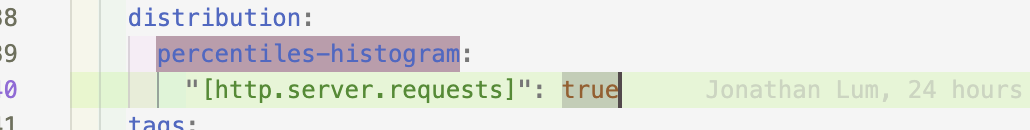

If we want to use the distribution configuration, we can try to narrow down the scope of the metrics. spring-boot-distribution

reference Actuator metrics
